| Capacity | 150 kg x 0.1 kg (adjustable) |
| Overload capacity | Up to 500 kg |
| Readouts | Dual display (operator and passenger) |
| LCD graphics high resolution operator panel | |
| Red LED passenger panel | |
| Electronics | Single phase power 110/230VAC at 50/60 hertz |
Atrax ABS960+ Check-in Conveyor Scales
Fast, accurate, efficient and affordable
With installations in over 170 countries and territories, the Atrax ABS960+ Check-in Conveyor Scale is a common sight at airport check-in counters. An average of 20 people per second use one of over 30,000 Atrax scales in service globally.
The ABS960+ Check-in Conveyor Scale units are divided into three main components:
- Scale base
- Operator display
- Passenger display

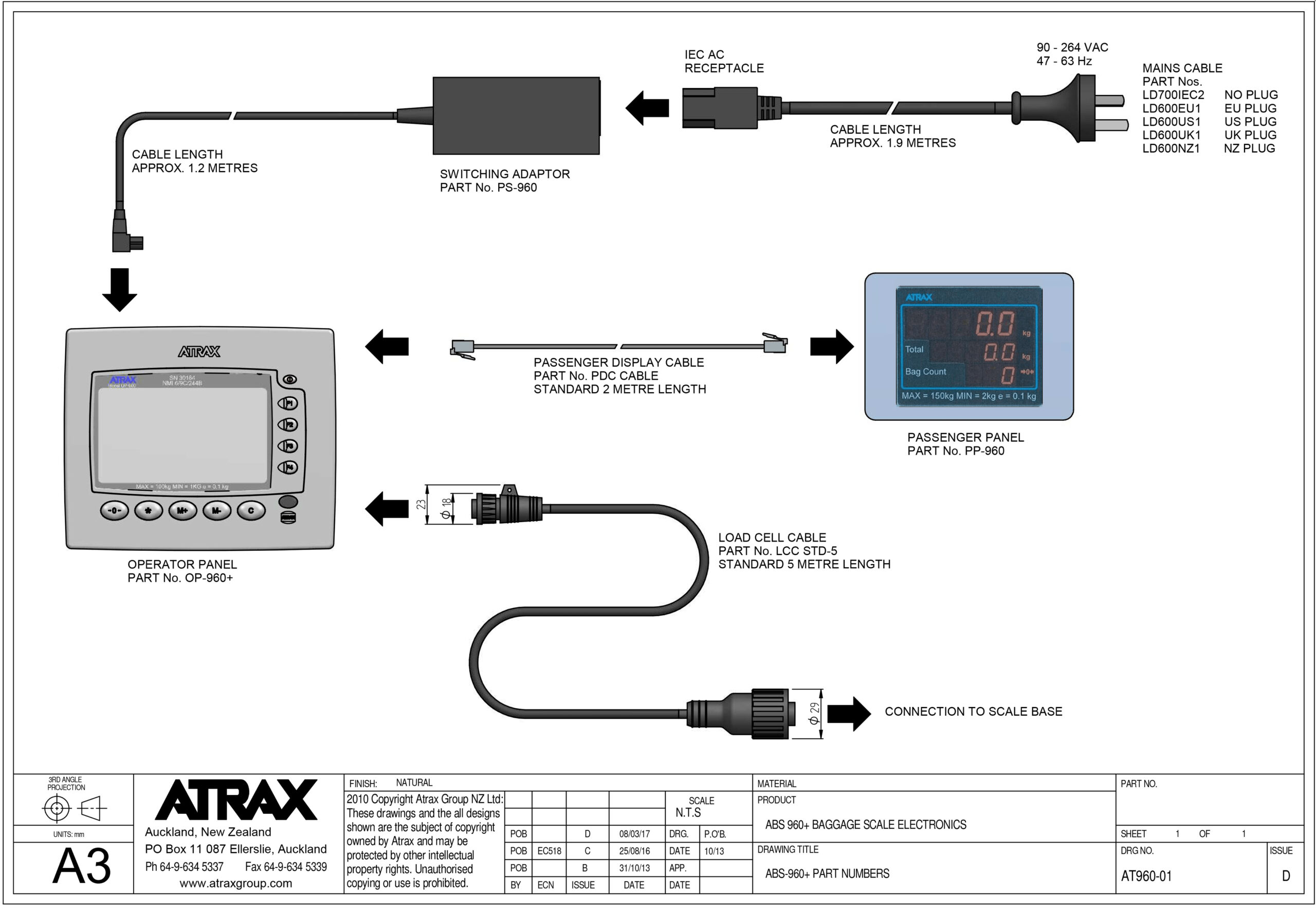

Each component is connected together with a single cable and the displays can be located to suit the check-in counter layout. All connections are plug-in, eliminating the need for on-site wiring.
A description of each component is provided below.
Baggage Scale Specifications (General)
Typical specifications are as follows but not limited to:
View
Scale Base
A typical Atrax scale base is shown, modified for the dimensions to suit client check-in conveyors.
The Atrax baggage scale base is designed to adapt to your baggage handling system, not vice versa. For more than 40 years and around the world, many different types of conveyors have been fitted to the Atrax scale bases. The design of the Atrax scale base, coupled with the experience of our designers, means that the base will accommodate most sizes of motorised conveyor (provided by others), which is essential for flexibility of check-in counter layout and conveyor design.
All Atrax scales use our OIML and NTEP approved high-precision load cells to guarantee accuracy, repeatability and reliability.
Operator and Passenger Displays
The Atrax ABS960+ scale system includes two display panels: one for the passenger to view, and another for the ticket agent or operator. These displays can be flush-mounted to form an integral part of the check-in counter. All display units feature clear digital readouts designed for easy visibility under airport lighting.
The high-resolution LCD display ensures Chinese characters can be correctly displayed.
The operator panel is made from rugged ABS material, whilst the passenger display panels are finished in stainless steel, for a robust and durable surface thar is clean and modern. The operator panel can also be integrated into a stainless-steel Extended Operator Panel to include conveyor controls.
Operator Panel Controls
The operator panel includes five soft-touch, yet robust, silicone rubber push buttons to control the scale functions.
- One button is for quickly and simply setting the scale reading to zero, which should only need to be done very occasionally.
- Three buttons are for the totalise feature , which indicates the cumulative weight of a passenger’s luggage, or the total weight of a group’s baggage.
- One programmable button for options such as ‘Print’ ‘Send Data’ ‘Belt Start’ or other user-defined functions.
Included in the scale electronics are a number of standard features that may be used or disabled. These include:
- An overweight bag signal with the choice of visual indication, audible indication and/or an output signal for external use. (E.g. for inhibiting conveyor induction of an overweight bag).
- A serial communication port for connection to a computer or printer.
Installation and Commissioning
The design of the Atrax ABS960+ baggage scale has been optimised for very easy installation and minimum time to install. There are only three cables to install including the mains power lead. Each cable has a plug fitting on both ends and can only plug in one way, therefore eliminating incorrect hook-up.
Once the displays and scale base have been set in place, they are simply plugged together with the cables supplied. The scale can then be turned on and its calibration checked by placing a known weight on the scale. Any calibration adjustment found necessary can easily be made via the front panel push buttons in only a few minutes.
