Extended Operator Panels (ABS960+)
Atrax Extended Operator Panels for the ABS960+ Check-in Conveyor Scales
The Atrax Extended Operator Panel is a functional add-on to the ABS960+ Check-in Conveyor Scales.
This is a stainless steel panel surrounding the operator panel, and which contains controls and a key switch pertaining to check-in agent operation of the check-in conveyor.

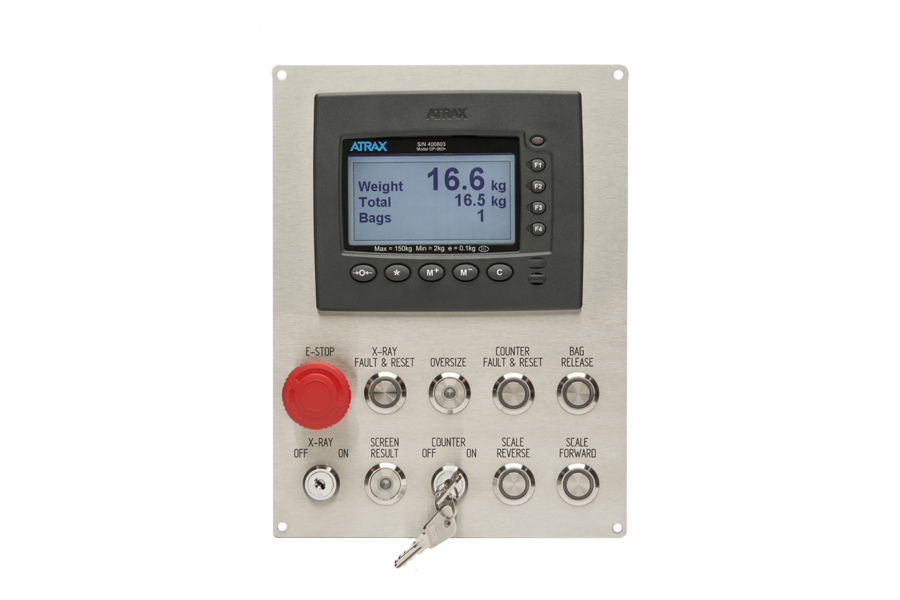

Typical components can include:
- On-off switch for the check-in station
- Emergency Stop (E-Stop)
- Illuminated or non-illuminated push buttons for functions such as belt advance, belt reverse, jam reset, oversize reset, bag release, tub load etc
- The required number of AS-i modules relative to the specified components.
Features and Benefits
Button Options
Buttons are available in two styles: flush-mounted versions for a neat look, or colourful protruding versions.
Except for the E-Stop (which has its own label), each button function is laser engraved into the stainless-steel panel, for long-lasting durability.
Except for the E-Stop (which has its own label), each button function is laser engraved into the stainless-steel panel, for long-lasting durability.
AS-i and Non-AS-i Options
AS-i units are modular and neatly potted, significantly reducing mounting and wiring time. Non-AS-i units can also be supplied if required.
Except for the E-Stop (which has its own label), each button function is laser engraved into the stainless-steel panel, for long-lasting durability.
Except for the E-Stop (which has its own label), each button function is laser engraved into the stainless-steel panel, for long-lasting durability.
Pre-Wired for Easy Installation

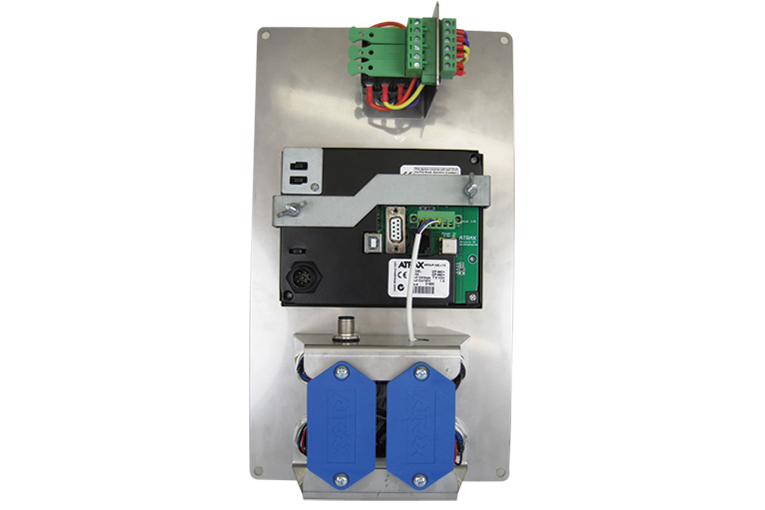

The buttons, key switch and E-Stop are pre-wired in a neat configuration at the rear of the panel. On-site connection is simple via the M12 AS-i plug and a 2-pin connector for the hard-wired E-stop.
Except for the E-Stop (which has its own label), each button function is laser engraved into the stainless-steel panel, for long-lasting durability.
Except for the E-Stop (which has its own label), each button function is laser engraved into the stainless-steel panel, for long-lasting durability.
Customisable Panel Layouts

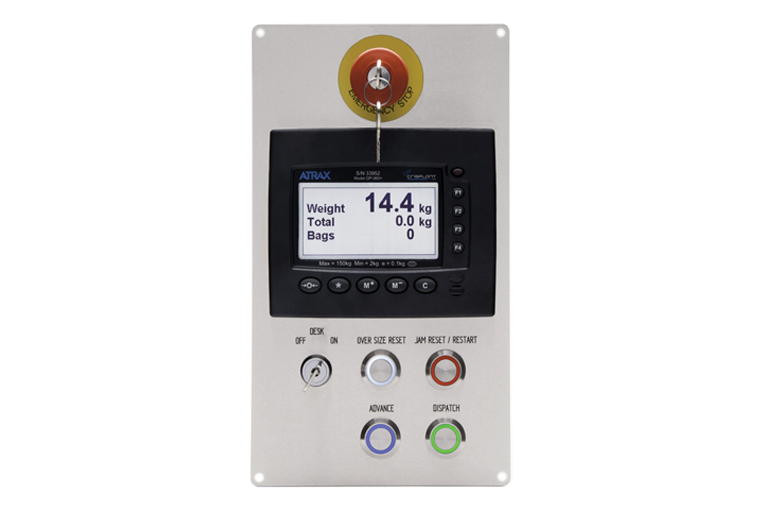

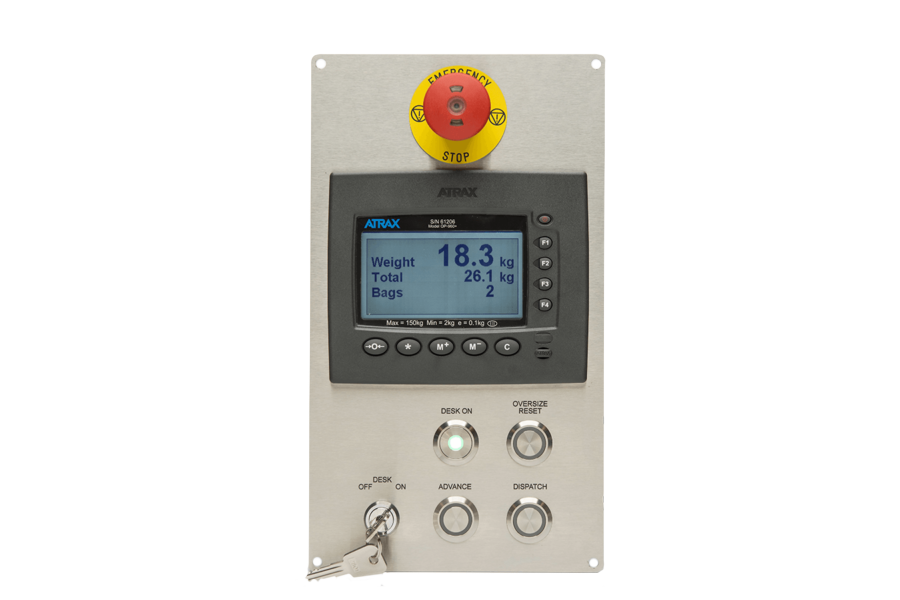

Extended Operator Panels can be quoted according to the quantity and function types of components required. Depending on the quantity and required component positions, the stainless steel panel size and orientation (portrait or landscape) can be manufactured to suit.
Factory-Mounted Option
If both scales and Extended Operator Panels are ordered, we mount the scale operator panel into the stainless steel Extended Operator Panel, and wire, test and neatly pack the completed units prior to dispatch.
